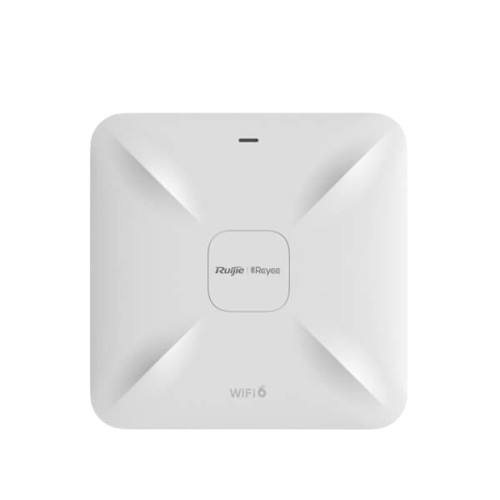

Ruijie Reyee RG‑RAP2260 Wi‑Fi 6 ceiling access point:

Here’s a polished overview of the Ruijie Reyee RG‑RAP2260 Wi‑Fi 6 ceiling access point:

---

 Overview & Models

The RG‑RAP2260 is a high-performance Wi‑Fi 6 (AX3000) ceiling-mount AP designed for medium-to-large indoor spaces like offices, hotels, retail, or stations. There are multiple variants:

• RG‑RAP2260 (standard): AX3000, 2.97 Gbps wireless, 2.5 GbE uplink + 1 GbE LAN

• RG‑RAP2260(G): AX1800 version (same chassis) with dual 1 GbE ports, 2.97 Gbps wireless

• RG‑RAP2260(E): AX3200, 4×4 MIMO, up to 3.2 Gbps wireless

• RG‑RAP2260(H): higher-end AX6000, dual 2.5 GbE (not our focus here)

---

 Performance Highlights (Standard RG‑RAP2260)

• Wireless speed: Combined 2.4 GHz (574 Mbps) + 5 GHz (2402 Mbps) = ~2.976 Gbps

• Client support: Connects 500+ devices, with ~110 recommended for peak performance

• MU‑MIMO 2×2, OFDMA, beamforming—enabling fast, multi-client efficiency

• 2.5 GbE uplink + 1 GbE LAN port; PoE+ (802.3at) power or 12 V DC

---

 Features & Management

• Reyee Mesh & SON: Simplifies network expansion and self‑organizing setup

• Ruijie Cloud: Free management for remote monitoring, over-the-air updates, captive portal setup

• Easy activation: Simple QR code provisioning via mobile app

• Security: Supports WPA2/WPA3, 802.1X, AES/TKIP encryption
