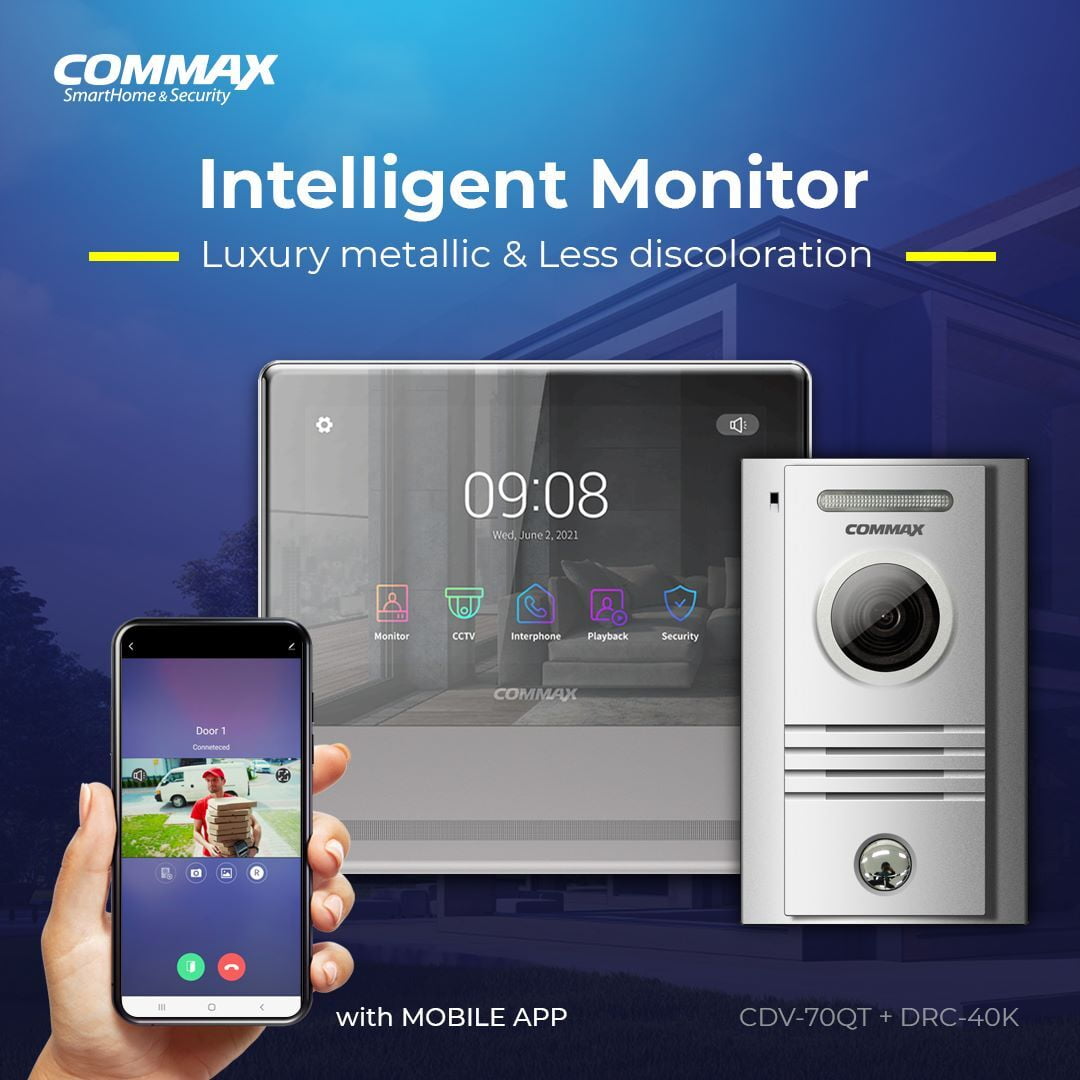

CDV-70QT / DRC-40K

 Commax CDV‑70QT (Indoor Monitor)

• 7″ full-touchscreen in HD resolution, acts as a command hub for your intercom system

• Built‑in Wi‑Fi & mobile app integration (“Commax Hey Call”): receive real-time video calls, open your door, and receive alerts on your smartphone

• Motion detection & video/image storage, with onboard memory for ~50 images and support for up to a 128 GB micro‑SD card

• Connects to 1–2 AHD cameras, plus optional CCTV and RF-intercom gear

• Power consumption: Standby ~3.5 W, Peak ~15 W; operates on 100–240 V ~50/60 Hz

• Installation & safety guidance included in the 2021 manual .

 Commax DRC‑40K (Outdoor Door Camera)

• Color CMOS camera with illumination sensor and white LEDs, for clear visitor visibility day or night

• Wall-mountable, surface-installed, weather‑resistant (–10 °C to +50 °C) .

• Operates on 12 V DC power supplied via the monitor, with 4‑wire video audio connection and 2-wire door release interface

• Field of view: approximately 75° horizontal × 55° vertical

• Dimensions: 96 mm × 155 mm × 32 mm

 Integration & Use Case

• The DRC‑40K connects directly to the CDV‑70QT via a 4‑wire cable (video/audio) and 12 V power; door strike control uses a 2‑wire line.

• Whenever someone presses the button, the indoor unit rings, shows video, and enables two‑way talk. You can also remotely unlock the door from the monitor or via mobile.

• With motion detection enabled, the CDV‑70QT captures and stores footage locally or onto the SD-card—and sends push notifications to your phone .
