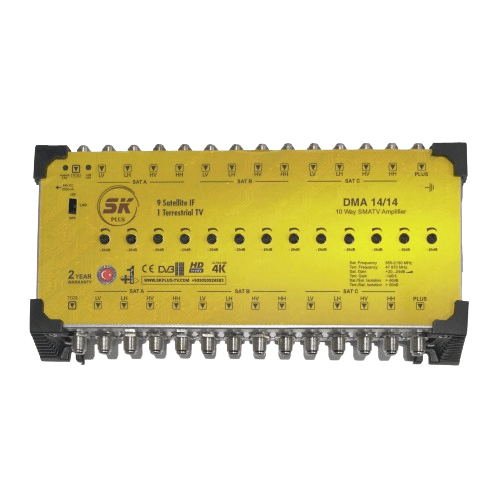

SKDMA1430D - Amplifier

Core Functionality

• Inputs:

  • 12 IF satellite inputs (typically from 3 Quattro LNBs, supporting 3 satellites × 4 bands/polarities)

  • 1 terrestrial (VHF/UHF RF) input

• Outputs:

  • Amplified outputs designed to feed into a downstream 30‑port multiswitch system, supporting up to 30 subscriber lines

---

⚙️ Signal Enhancement

• Amplification: Boosts both satellite and terrestrial signals to compensate for cable losses and ensure strong, balanced distribution.

• Target Use: Acts as a high-capacity line amplifier for Medium Density Units (MDUs) or large single-dwelling systems with many receivers .

---

⚡ Power & Installation

• Powered via external DC supply (spec sheet available via product link).

• Designed for indoor telecom rack or cabinet mounting, typically upstream of large multiswitch arrays .

---

🎯 Ideal Applications

• Large residential buildings, apartments, hotels, or commercial installations needing crystal-clear satellite + terrestrial TV signals to 30+ outputs

• A reliable solution to enable cascaded signal distribution while maintaining signal strength.
