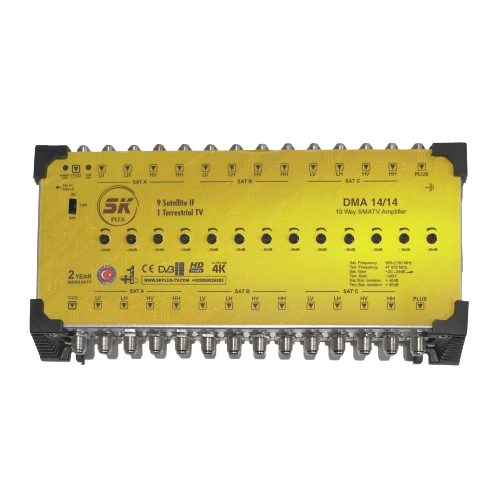

SKDMA14*14 - Amplifier

General Overview

• Inputs: 13 total inputs — 12 satellite IF (typically from 3 Quattro LNBs, covering 3 satellite positions × 4 bands/polarities) plus 1 terrestrial (RF/VHF-UHF) input

• Outputs: Amplifies signals for cascading into a 14-output multiswitch system, often used to supply a 14×14 distribution matrix (via T or SK14-series multiswitch) .

---

⚙️ Performance & Features

• Amplification: Enhances combined satellite and terrestrial inputs, compensating for signal losses in cascaded systems.

• Signal Quality: Built-in adjustable gain ensures robust signal levels across outputs.

• Protection Features: Includes short-circuit protection and separate power control for LNB power—ideal for fault isolation .

---

🔌 Power & Installation

• Power Source: Requires external DC power supply; powers both the amplifier and satellite LNBs.

• Installation Utility: Compact metal housing designed for indoor telecom racks or distribution panels, bridging between multi-LNB inputs and downstream SK/T-series multiswitches.

---

✅ Ideal Applications

• Designed for medium-to-large SMATV installations — perfect for small hotels, apartment units, or commercial buildings requiring high-quality signal over multiple levels/cascades.

• Recommended for systems where signal must be split and cascaded to multiple multiswitches without degradation.

---

📝 Why Choose It?

• Ensures strong, stable satellite + terrestrial signals across cascaded distribution points.

• Offers adjustable gain and protection for reliable, maintenance-friendly operation.

• Compact, rack-friendly design makes it easy to integrate into existing setups.
