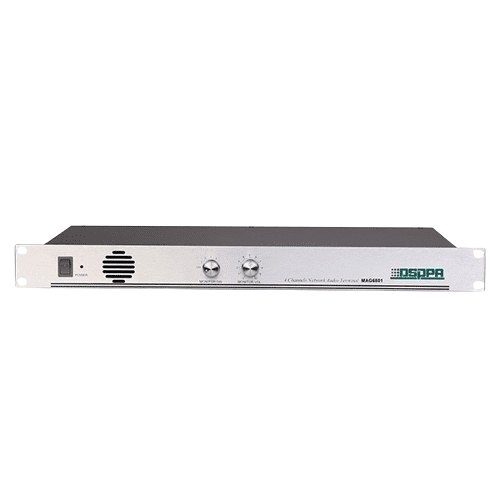

MAG6801 #1309

The MAG6801 is a 1-channel network audio terminal designed for transmitting high-fidelity audio over TCP/IP networks. It features dual network ports, allowing operation across different network segments, and supports automatic 10M/100M network adaptation. With a maximum 48kHz sampling rate and 16-bit MP3/WAV/PCM decoding, it ensures clear audio playback. The device includes an EMC input and output for emergency signal integration, a built-in monitor speaker for local audio monitoring, and offers a 24V/100mA output along with a short-circuit output for external device control. Its design is suitable for applications requiring background music, emergency paging, and alarm signals.

● Network audio terminal.
● One EMC input, one EMC output.
● 24V/100MAoutput and shortcut output.
● 10M/100M10M/100Mautomatic network adaption.
● Two network connection ports can work between different networks.
● Can play background music, emergency paging and alarm signal from the host.
● Maximum 48KHz sample rate, 16bit digital audio decode, Built-in monitor speaker.
