DSP5211 - 6.5" - 10W
DSP5211 - 6.5" - 10W
Available in stock (1000)

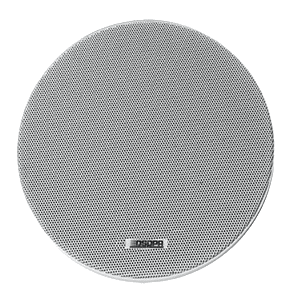

10W Coaxial Frameless Ceiling Speaker
● Meet the IEC 268-5 power handling capacity (PHC) standard.
● 6.5" bass unit with magnetic circuit encapsulated of special engineering plastic process.
● Run continuously for 100 hours and carry out simulating acoustic feedback exposure (SAFE) test.
● Concentric 0.75" tweeter provides clear and round treble; the diffraction of a high profile provides a broad, uniform coverage.
● Bear double rated powers within a short period to ensure its high reliability under extreme conditions, prolong its service life, and reduce the possibility of occurrence of fault or degradation.
Model |
DSP5211 |
DSP5211C |
Drive Units |
6.5"*1 |
0.75"*1 |
RMS |
10W |
|
Rated Voltage |
70V/100V |
|
Sensitivity(1m, 1W) |
93±2dB |
|
Max S.P.L. (1m) |
103±2dB |
|
Freq. Res. |
90Hz-18KHz |
|
Opening Diameter |
Φ168-172mm |
|
Dimension |
Φ190*80mm |
Φ190*105mm |
Weight |
1.0Kg |
1.1Kg |
