DRC-4PIP

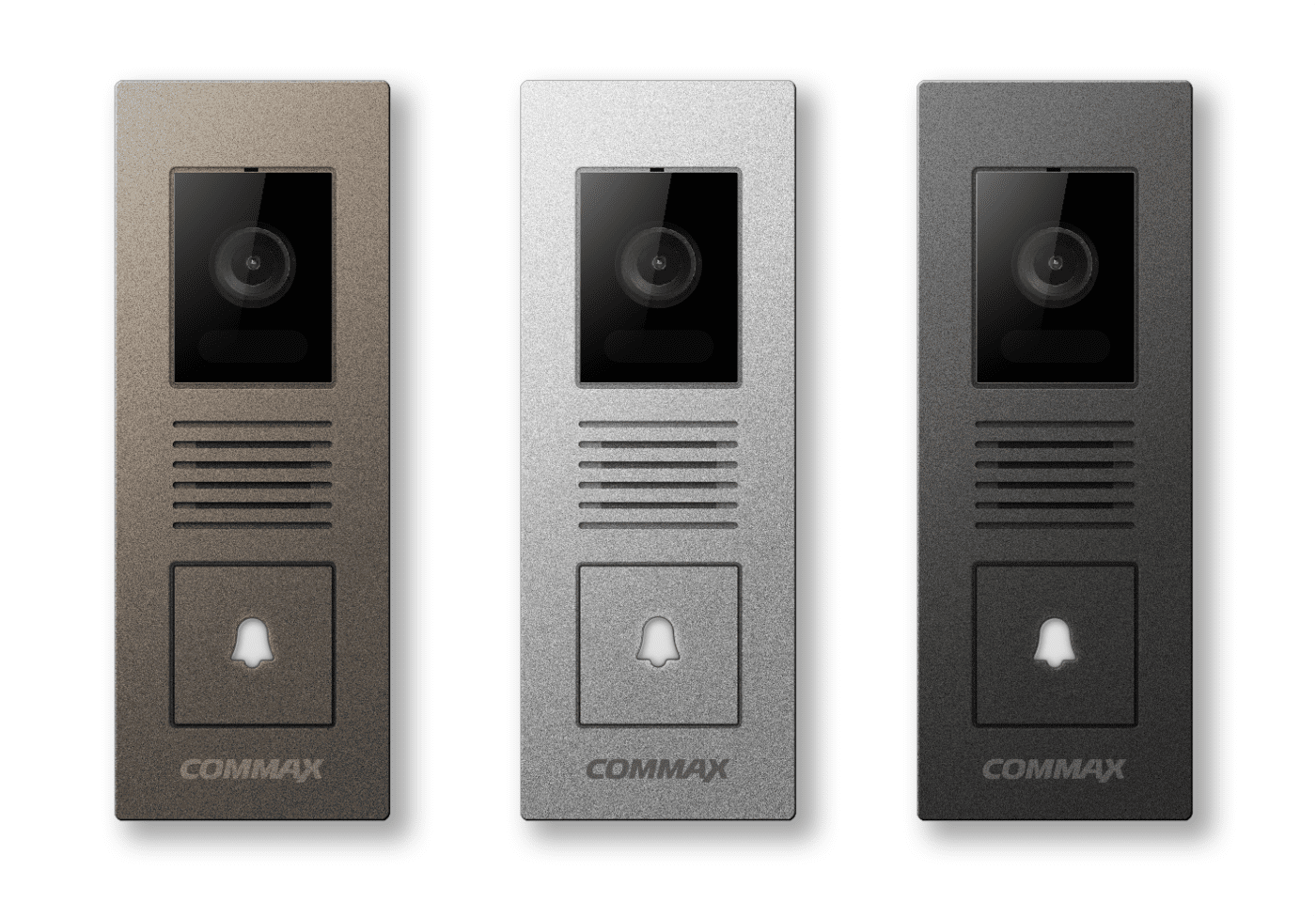

Commax DRC‑4PIP – Outdoor Door Camera

Key Specifications & Features

• Color CMOS (CVBS) camera with embedded IR LEDs, offering night vision capabilities

• Wide field of view: ~136° diagonal (~110° horizontal × 80° vertical) .

• Flushed/surface-mountable aluminium housing, rated IP65 for weather resistance

• Operating temperature: –30 °C to +50 °C, designed for durability across climates

• Power & connections:

  • Powered via DC 12 V from the monitor, connected by a 4-wire cable (voice, ground, video, +12 V)

  • Includes 2-wire dry contact relay (NO) for door lock control up to 2 A/30 V DC

• Dimensions: 50 × 135 × 23 mm, compact design

 Integration with CDV‑70QT

• Fully compatible: the CDV‑70QT monitor supports up to two CVBS/AHD cameras and power supply relays for lock control

• When motion or button is detected, the CDV‑70QT displays live video, enables two‑way talk via audio line, and allows door unlocking—all controlled through the 4+2 wiring interface.
